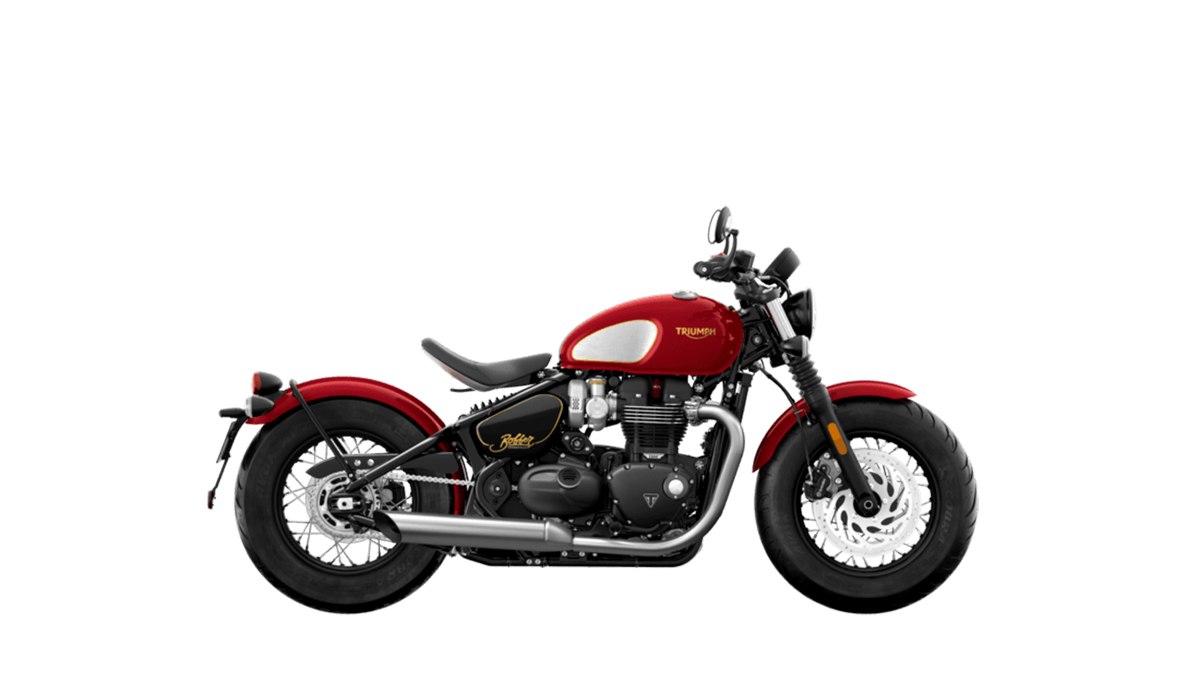

BONNEVILLE BOBBER GOLD LINE
HAND-PAINTED GOLD LINING

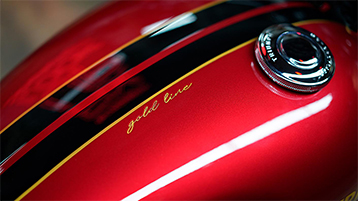

The unique gold-lined Carnival Red fuel tank set against the blacked-out engine makes for a bold and beautiful Bobber.
CHARACTERFUL PERFORMANCE
The bespoke Bobber tune brings a unique character to the smooth and torquey Bonneville 1200cc HT engine.
BRAINS AND BRAWN
Two riding modes give the perfect throttle response and traction control settings to suit wet and dry conditions.
CLASSIC WIRE WHEELS
Sixteen-inch wire-spoked wheels with big Avon Cobra tyres provide a comfortable ride with assured handling.
PRIME POSITION
Adjustable to achieve the perfect cruising position, the low 690mm seat combines style with comfort.
| ENGINE & TRANSMISSION | |
|---|---|
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Capacity | 1200 cc |
| Bore | 97.6 mm |
| Stroke | 80 mm |
| Compression | 10.0:1 |
| Max Power EC | 78 PS / 76.9 bhp (57.5 kW) @ 6100 rpm |
| Max Torque EC | 106 Nm @ 4000 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin silencers |
| Final Drive | Chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-speed |
| CHASSIS | |
|---|---|
| Frame | Tubular steel, twin cradle frame |
| Swingarm | Twin sided fabrication |
| Front Wheel | Wire 32-spoke, 16 x 2.5 inches |
| Rear Wheel | |
| Front Tyre | MT 90 B16 |
| Rear Tyre | 150/80 R16 |
| Front Suspension | ØK47mm Showa cartridge forks |
| Rear Suspension | Mono-shock RSU with linkage |
| Front Brakes | Single Ø310mm floating disc, Brembo 2-piston axial caliper, ABS |
| Rear Brakes | Single Ø255mm disc, Nissin single piston sliding axial caliper, ABS |
| Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
| DIMENSIONS & WEIGHTS | |
|---|---|
| Width Handlebars | 800 mm |
| Height Without Mirror | 1024 - 1055 mm |
| Seat Height | 690 - 700 mm |
| Wheelbase | 1500 mm |
| Rake | 25.4 º |
| Trail | 92.0 mm |
| Dry Weight | 251 kg |
| Tank Capacity | 12 L |
| FUEL CONSUMPTION | |
|---|---|
| Fuel Consumption | 60.9 mpg (4.6 l/100km) |
| CO2 Figures | 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
